Rear Seat Belt Guide, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
CAUTION:

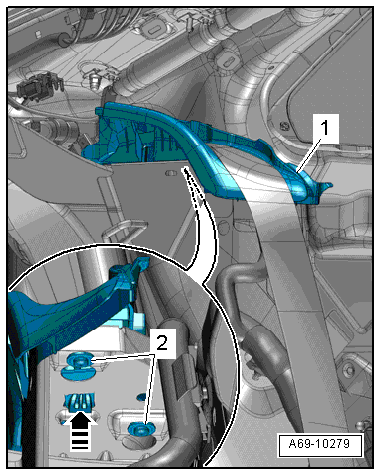

- Do not rotate bolts -2- under any circumstances when removing and installing the seat belt guide -1-. They are set by the manufacturer.
- Replace the entire belt guide if damaged.
-- Remove the side trim panel. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the foam part from the gap.
-- Release the belt guide retaining hooks in direction of -arrow-.
-- Slide the belt guide -1- back until the bolt heads -2- can be disengaged from the console on the body.
-- Rear outer right seat belt guide: Disconnect the connector from the Rear Parking Aid Warning Buzzer -H15-.
-- Thread the belt webbing out of the belt guide and remove the belt guide.
