Overview - Rear Seat Belt Latch

WARNING: This page is about a different variant/trim than selected.

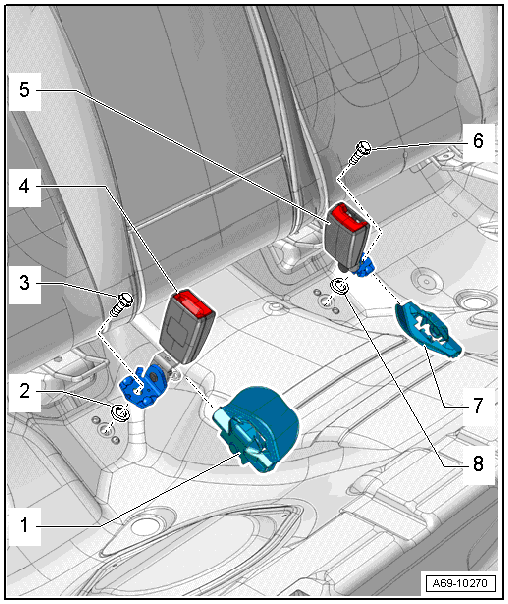

Fig 1: Exploded View Of Rear Seat Belt Latch

Courtesy of AUDI OF AMERICA, LLC

Cover
- For the belt latch
- Discontinued with newer versions
Seal
Bolt
- 45 Nm
- Always replace
Right Seat Belt Latch
- Always replaced if the belt tensioner has deployed with the belt on
- Removing and installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .
Left Seat Belt Latch
- Always replaced if the belt tensioner has deployed with the belt on
- Removing and installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .
Bolt
- 45 Nm
- Always replace
Cover
- For the belt latch
- Discontinued with newer versions
Seal
