Overview - Knee Airbag, Front Passenger Side

WARNING: This page is about a different variant/trim than selected.

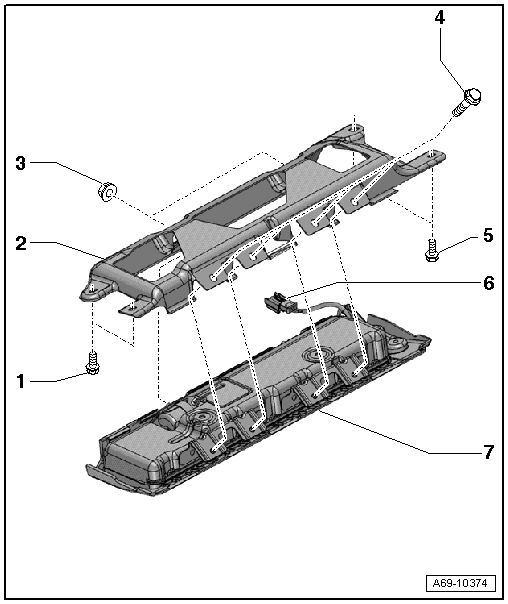

Fig 1: Exploded View Of Knee Airbag, Front Passenger Side

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 3 Nm
- Always replace
- Quantity: 2
Mount
- For knee airbag
- disconnect from the passenger knee airbag. Refer to PASSENGER KNEE AIRBAG, DISCONNECTING FROM MOUNT
Nut
- 9 Nm
- Always replace
- Quantity: 2
Bolt
- 4.5 Nm
- Always replace
- Quantity: 4
Bolt
- 3 Nm
- Always replace
- Quantity: 2
Connector
- For Front Passenger Knee Airbag Igniter -N296-
- Disconnecting. Refer to Removing .
Passenger Side Knee Airbag
- With Front Passenger Knee Airbag Igniter -N296-
  WARNING:
  Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
- Removing and installing. Refer to KNEE AIRBAG WITH IGNITER, REMOVING AND INSTALLING, FRONT PASSENGER SIDE .
- Disconnect from the mount. Refer to PASSENGER KNEE AIRBAG, DISCONNECTING FROM MOUNT
