Front Passenger Knee Airbag Right Bracket, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the passenger knee airbag. Refer to KNEE AIRBAG WITH IGNITER, REMOVING AND INSTALLING, FRONT PASSENGER SIDE .

-- Remove the bolts -arrows-.

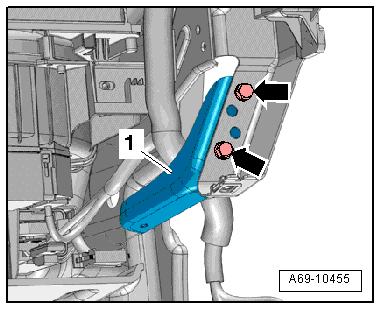

Fig 1: Identifying Bolts -Arrows
GWWA69-10455Courtesy of AUDI OF AMERICA, LLC

-- Remove the passenger knee airbag right bracket -1-.
