Driver Knee Airbag, Disconnecting From Mount

WARNING: This page is about a different variant/trim than selected.

Procedure

-- Remove the driver knee airbag. Refer to KNEE AIRBAG WITH IGNITER, REMOVING AND INSTALLING, FRONT PASSENGER SIDE .

-- Remove the nuts -arrows-.

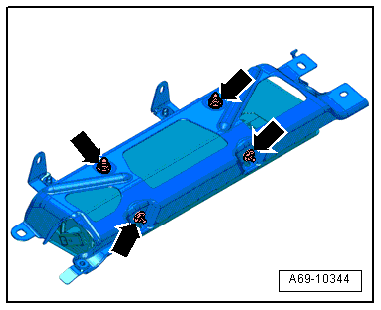

Fig 1: Identifying Nuts -Arrows
GWWA69-10344Courtesy of AUDI OF AMERICA, LLC
NOTE:

The knee airbag is shown from below.

-- Remove the knee airbag from the mount.
