Driver Knee Airbag Right Bracket, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the driver knee airbag. Refer to DRIVER SIDE KNEE AIRBAG WITH IGNITER, REMOVING AND INSTALLING .

-- Remove the bolts -arrows-.

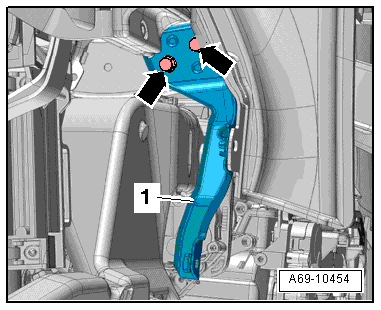

Fig 1: Identifying Bolts -Arrows
GWWA69-10454Courtesy of AUDI OF AMERICA, LLC

-- Remove the driver knee airbag right bracket -1-.
