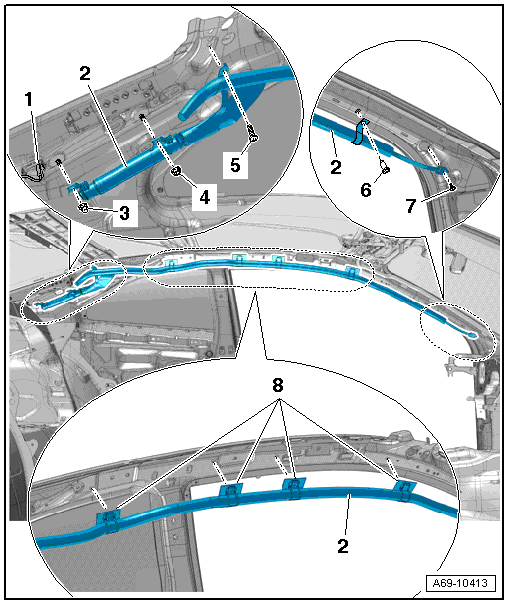

Overview - Head Curtain Airbag
WARNING: This page is about a different variant/trim than selected.
- Connector
- For Driver Head Curtain Airbag Igniter -N251- /Front Passenger Head Curtain Airbag Igniter -N252-
- Disconnecting and connecting. Refer to Removing
- Head Curtain Airbag
- Driver side: with Driver Head Curtain Airbag Igniter -N251-
- Passenger side: with Front Passenger Head Curtain Airbag Igniter -N252-WARNING:
Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
- Removing and installing. Refer to HEAD CURTAIN AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
- Nut
- 9 Nm
- On ground bolt
- Nut
- 9 Nm
- Always replace
- Bolt
- 3.5 Nm
- Always replace
- Threaded holes for screws must always be cleaned, for example, with thread cutter
- Self-locking
- Clip
- Always replace
- With a factory installed mount with 1 clip and double adhesive tape, use 2 clips for re-installing Parts Information.
- Quantity 1 or 2 depending on the version
- Bolt
- 3.5 Nm
- Always replace
- Threaded holes for screws must always be cleaned, for example, with thread cutter
- Self-locking
- Retaining Clips
- Removing and installing. Refer to Removing .
