Front Passenger Airbag Deactivation Key Switch, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .

-- Turn on the ignition.

-- Disconnect the battery ground cable with the ignition turned on. Refer to BATTERY .

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING, VEHICLES WITHOUT KNEE AIRBAGS .

Fig 1: Disconnecting Electrical Harness Connector -2

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Disconnect the connector -2-.

-- To do this, press the catch -1- in the direction of the -arrow- until the connector disengages.

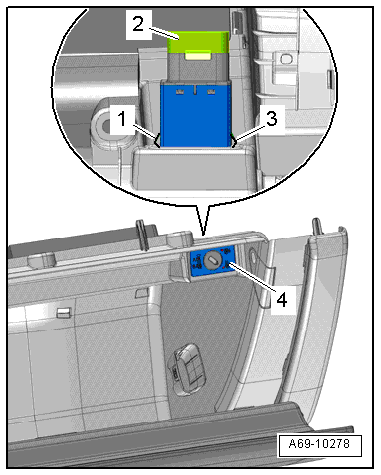

Fig 2: Pressing Catch -1- In Direction Of -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2-.

-- Release the retaining springs -1- and -3- and press the front passenger airbag key switch -4- out of the key switch housing.

Fig 3: Disconnecting Electrical Harness Connector -2

Courtesy of AUDI OF AMERICA, LLC
