Airbag Unit With Igniter, Removing And Installing, Attached Airbag Version: Removing

WARNING: This page is about a different variant/trim than selected.

WARNING:

Follow all pyrotechnic components safety precautions. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
Follow all regulations when disposing of pyrotechnic components. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, STORING, TRANSPORTING AND DISPOSING .

-- Move the steering wheel as far down as possible.

-- Disconnect the battery ground cable with the ignition turned on. Refer to BATTERY .

-- Turn the steering wheel so the opening on the rear side of it faces upward. This is approximately the 12:00 position.

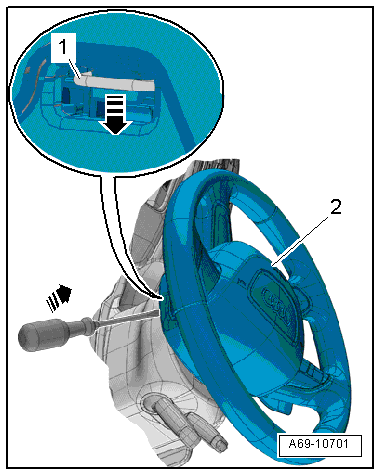

Fig 1: Locking Bracket -1- For The Driver Side Airbag -2-

Courtesy of AUDI OF AMERICA, LLC

-- Releases the locking bracket -1- for the driver side airbag -2- -arrows-. Use a T25 TORX screwdriver, approximately 100 mm long.

NOTE:

Electrical wires can be damaged with a flat-head screwdriver.

-- Turn the steering wheel 180° and repeat the procedure on the opposite side.

-- Bring the steering wheel back into the center (wheels are straight).

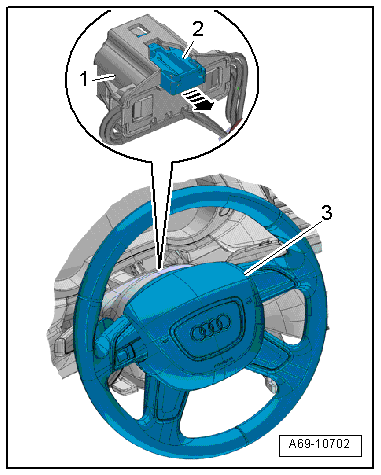

Fig 2: Connector Lock -2-, Driver Airbag -3-

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Remove the driver side airbag -3- from the steering wheel slightly.

-- Pull out the connector lock -2- -arrow- and press it down, disconnect the connector -1-.

-- Vehicles with a multifunction and Tiptronic steering wheel: Disconnect the connector.

WARNING:

Set the airbag down so the impact cushion faces upward.
