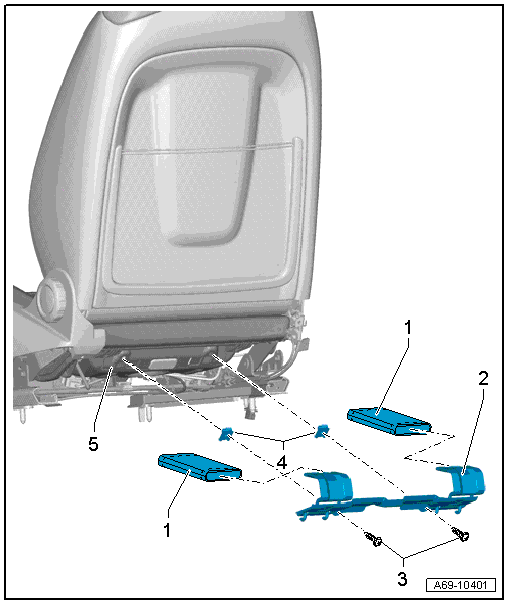

Overview - Front Child Seat Anchors
WARNING: This page is about a different variant/trim than selected.
NOTE:
Depending on the country, the mounting point for the top tether is integrated in the bracket on the front seat -item 2- OVERVIEW - FRONT CHILD SEAT ANCHORS .
- Pocket
- Slide onto the bracket
- Quantity: 2
- Bracket
- Replace if damaged.
- Passenger seat only
- Top Tether integrated in some countries
- Bolted with the seat pan
- Check after an accident. Refer to CHILD SEAT ANCHORS, CHECKING AFTER A COLLISION .
- Removing and installing. Refer to FRONT CHILD SEAT ANCHOR, REMOVING AND INSTALLING .
- Bolts
- 8 Nm
- Replace if bracket is damaged
- Quantity: 2
- Install with bolt-locking compound; bolt-locking compound Parts Information.
- Spring Nut
- Replace if bracket is damaged
- Inserted in the seat pan
- Seat Pan
