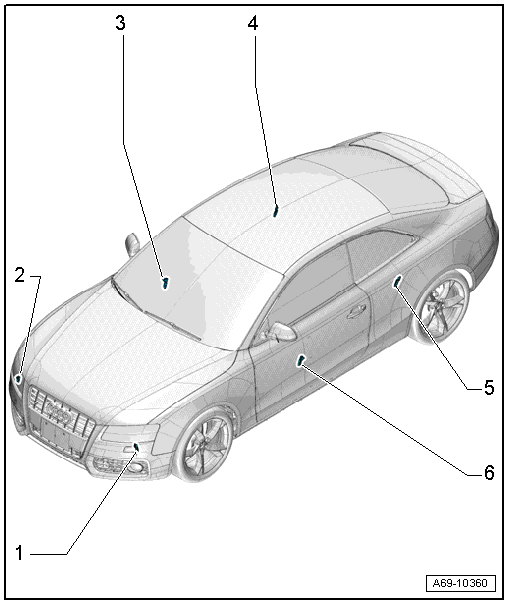

Component Location Overview - Airbag Crash Sensors
WARNING: This page is about a different variant/trim than selected.
- Driver Front Airbag Crash Sensor -G283-
- 9 Nm
- Installation location: on the headlamp housing bracket
- Removing and installing. Refer to Driver Front Airbag Crash Sensor -G283-, REMOVING AND INSTALLING .
- Passenger Side Front Airbag Crash Sensor -G284-
- 9 Nm
- Installation location: on the headlamp housing bracket
- Removing and installing. Refer to Driver Front Airbag Crash Sensor -G283-, REMOVING AND INSTALLING .
- Front Passenger Side Airbag Crash Sensor -G180-
- 5 Nm
- Component location: inside the door
- Removing and installing. Refer to DRIVER SIDE AIRBAG CRASH SENSOR -G179- / FRONT PASSENGER SIDE AIRBAG CRASH SENSOR -G180-, REMOVING AND INSTALLING .
- Front Side Airbag Crash Sensors, Safety Precautions. Refer to FRONT SIDE AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS
- Passenger Side Rear Side Airbag Crash Sensor -G257-
- 9 Nm
- Installation location: on the inner wheel housing under the side trim
- Removing and installing. Refer to Driver Side Rear Side Airbag Crash Sensor -G256- / Passenger Side Rear Side Airbag Crash Sensor -G257-, REMOVING AND INSTALLING .
- Driver Side Rear Side Airbag Crash Sensor -G256-
- 9 Nm
- Installation location: on the inner wheel housing under the side trim
- Removing and installing. Refer to Driver Side Rear Side Airbag Crash Sensor -G256- / Passenger Side Rear Side Airbag Crash Sensor -G257-, REMOVING AND INSTALLING .
- Driver Side Airbag Crash Sensor -G179-
- 5 Nm
- Component location: inside the door
- Removing and installing. Refer to DRIVER SIDE AIRBAG CRASH SENSOR -G179- / FRONT PASSENGER SIDE AIRBAG CRASH SENSOR -G180-, REMOVING AND INSTALLING .
- Front Side Airbag Crash Sensors, Safety Precautions. Refer to FRONT SIDE AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS
