Brake System Vacuum Pump -V192-: Removing

WARNING: This page is about a different variant/trim than selected.

NOTE:

The electrical vacuum pump is located in the engine compartment on the right side in front of the plenum chamber bulkhead.

-- Remove the engine cover.

-- Disconnect electrical connector -1-.

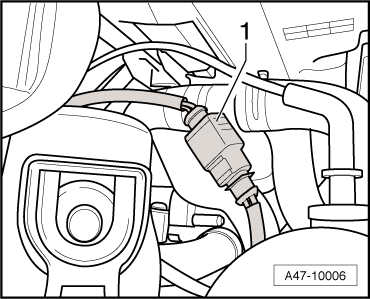

Fig 1: Disconnecting Electrical Connector

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the clamp on the vacuum hose using suitable pliers.

-- Disconnect the vacuum hose from the vacuum pump.

-- Press the right and lift clips -arrow- out of the bracket by hand.

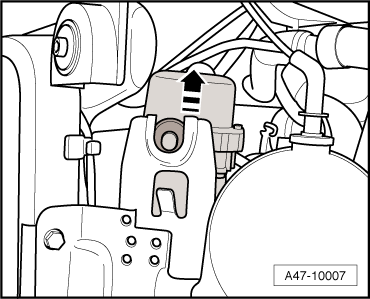

Fig 2: Identifying Brake System Vacuum Pump V192 Upward From Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Remove the electrical vacuum pump upward while holding the rubber buffer securely.

Fig 3: Identifying Electrical Vacuum Pump Upward

Courtesy of AUDI OF AMERICA, LLC

NOTE:

When removing the vacuum pump, make sure the lower rubber buffer does not fall into the engine compartment.
