Transmission Identification: Notes

WARNING: This page is about a different variant/trim than selected.

NOTE:

For engine codes, transmission allocation, ratios and capacities, refer to Specifications .

Location on Transmission

-I- AWD (Manual Transmission 0B2)

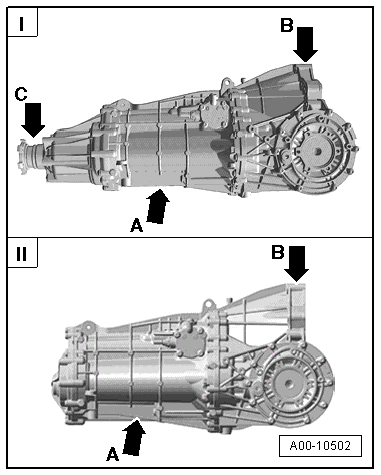

Fig 1: Locating Transmission Identification

Courtesy of AUDI OF AMERICA, LLC

-Arrow A- manual transmission 0B1 or 0B2 MANUAL TRANSMISSION 0B1 OR 0B2 -ARROW- .
-Arrow B- engine code and build date TRANSMISSION CODE -ARROW A- AND TRANSMISSION BUILD DATE -ARROW B- .
-Arrow C- rear flange shaft for the AWD

-II- FWD (manual transmission 0B1)
