Flange/Driveshaft Seal, Rear Final Drive 0BE: Removing

WARNING: This page is about a different variant/trim than selected.

Fig 1: Exhaust System Clamping Sleeves

Courtesy of AUDI OF AMERICA, LLC

-- Separate the exhaust system at the clamping sleeves -1 and 2-.

-- Remove rear portion of exhaust system. Refer to the appropriate service information .

NOTE:

A second technician will be needed to help remove the rear section of the exhaust system.

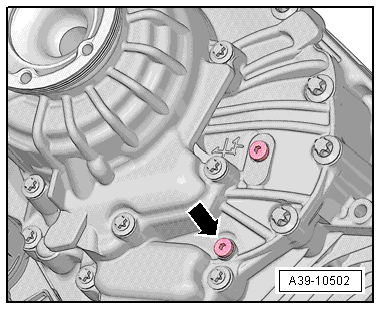

-- Open the gear oil drain plug -arrow- and let approximately 300 ml gear oil drain out.

Fig 2: Gear Oil Drain Plug

Courtesy of AUDI OF AMERICA, LLC

-- Install and tighten the new drain plug -arrow-. Tightening specification, refer to item 16

-- Remove the driveshaft from the rear final drive. Refer to DRIVESHAFT, REMOVING FROM REAR FINAL DRIVE AND INSTALLING .

Fig 3: Identifying Mark Position Of Driveshaft Flange To Rear Final Drive

Courtesy of AUDI OF AMERICA, LLC

-- Guide the driveshaft between the fuel tank and the rear subframe downward and tie it to the side.

-- Remove any high temperature grease inside the flange/driveshaft.

Fig 4: Identifying Circlip, Removal/Installation

Courtesy of AUDI OF AMERICA, LLC

-- Remove the locking ring -arrow-.

-- Mark the position of the flange/driveshaft -B- to the pinion -A- -arrow-.

Fig 5: Locating Mark Position Of Flange/Driveshaft To Pinion

Courtesy of AUDI OF AMERICA, LLC

NOTE:

This mark -arrow- is needed so that the color dot -C- on the outside of the flange remains in its earlier position.
Only by doing this can the smallest imbalance possible inside the rear final drive be guaranteed.

-- Remove the flange/driveshaft.

Fig 6: Two-Arm Puller Kukko 20-10

Courtesy of AUDI OF AMERICA, LLC

A - For example, two-arm puller Kukko 20-10

-- Place an absorbent cloth -A- under the final drive on the subframe.

Fig 7: Identifying Cloth Under Final Drive On Subframe

Courtesy of AUDI OF AMERICA, LLC

-- Puncture the metal cover on the shaft seal -A- in direction of the -arrow- using a scriber -B-.

Fig 8: Puncturing Metal Cover Using Scriber

Courtesy of AUDI OF AMERICA, LLC

-- Insert a screw -arrow- into this opening -A-.

Fig 9: Identifying Screw On Metal Cover

Courtesy of AUDI OF AMERICA, LLC

-- Remove the flange/driveshaft seal -A- in direction of the -arrow-.

Fig 10: Identifying Flange/ Driveshaft Seal, Removal

Courtesy of AUDI OF AMERICA, LLC

B - Sheet-metal screw
