EVAP Canister, Removing And Installing, AUDI A6 Hybrid: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi A6 Quattro, 2017 Audi A6, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Follow all safety precautions. Refer to SAFETY PRECAUTIONS .

-- Follow the guidelines for clean working conditions. Refer to CLEAN WORKING CONDITIONS .

-- Remove the rear left underbody trim panel. Refer to UNDERBODY TRIM PANEL .

-- Remove the exhaust system heat shield. Refer to MOLDINGS, TRIMS, EXTENSIONS AND TRIM PANELS .

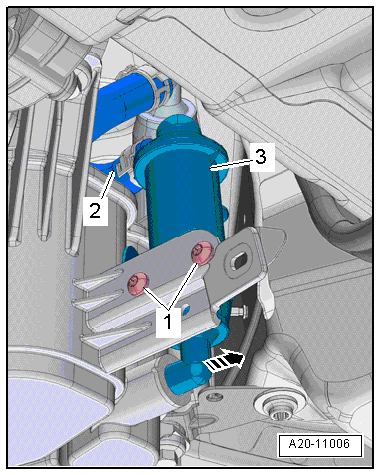

-- Remove the bolts -1-.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore item -2-.

-- Remove the honeycomb filter -3- and bracket from the EVAP canister in direction of -arrow-.

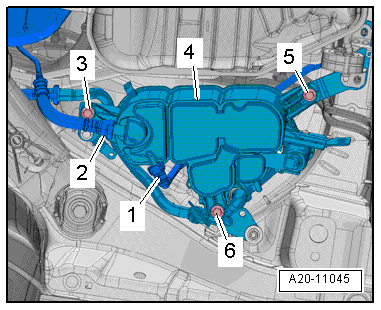

-- Remove the breather line -1- to the EVAP Canister Purge Regulator Valve 1 -N80-. Disconnect the connector couplings. Refer to CONNECTOR COUPLINGS, SEPARATING .

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the ventilation line -2- to the fuel tank. Disconnect the connector couplings. Refer to CONNECTOR COUPLINGS, SEPARATING .

-- Remove bolts -3, 5 and 6- and remove the EVAP canister -4-.
