Tightening Specifications

WARNING: This page is about a different car, the 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

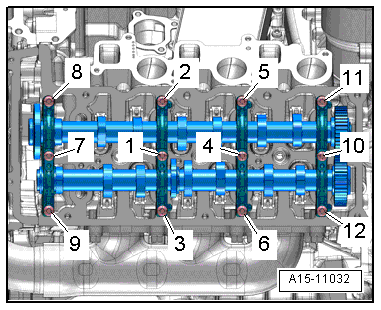

GWWA15-11032Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts in two steps in the sequence shown.

Step Bolts Tightening Specification
1. -1 to 12- Install all the way in by hand.
2. -1 to 12- 9 Nm
GWWA15-10993Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts in two steps in the sequence shown.

Step Bolts Tightening Specification
1. -1 to 12- Install all the way in by hand.
2. -1 to 12- 9 Nm
