Overview - Cylinder Head Cover: Notes
WARNING: This page is about a different car, the 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

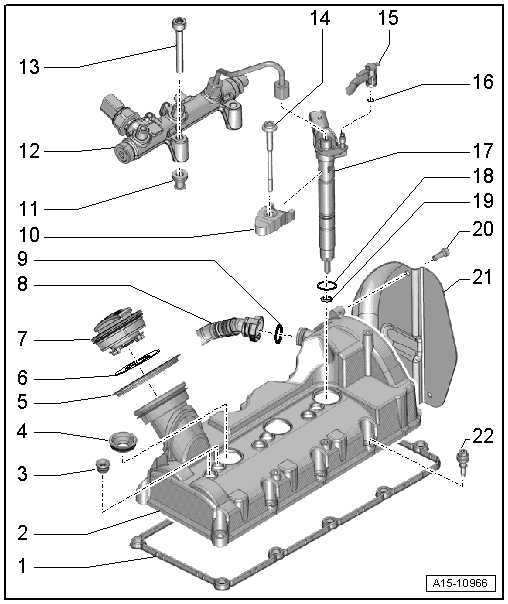

The cylinder head cover for cylinder bank 2 (left) is shown in the illustration.
- Seal
- Replace if damaged or leaking
- For the cylinder head cover
- Cylinder Head Cover
- Removing and installing. Refer to CYLINDER HEAD, REMOVING AND INSTALLING .
- Grommet
- Replace if damaged or leaking
- Seal
- For fuel injector
- Replacing. Refer to FUEL INJECTOR SEALS, REMOVING AND INSTALLING .
- Grommet
- Seal
- For the cap
- Replace if damaged or leaking
- Cap
- Hose
- For the crankcase ventilation
- O-ring
- Tension Clamp
- Removing and installing. Refer to FUEL INJECTORS, REMOVING AND INSTALLING .
- Sealing Bushing
- For the fuel rail
- Fuel Rail
- Follow the guidelines for clean working conditions.
- Do not change the angles of the high pressure lines
- Install the high pressure lines. Refer to HIGH PRESSURE LINES, REMOVING AND INSTALLING .
- Bolt
- Tightening specification -Item 17- OVERVIEW - FUEL INJECTORS .
- Bolt
- Tightening specification -Item 3- OVERVIEW - FUEL INJECTORS .
- Fuel Return Hose
- Follow the guidelines for clean working conditions.
- O-ring
- Always replace
- Injector
- Follow the guidelines for clean working conditions..
- Removing and installing. Refer to FUEL INJECTORS, REMOVING AND INSTALLING .
- O-ring
- Always replace
- Copper Ring
- Always replace
- Bolt
- 9 Nm
- Heat Shield
- Not installed on all versions
- Bolt
- With seal
- Always replace
- Tightening specification and sequence. Refer to graphic below. ,
