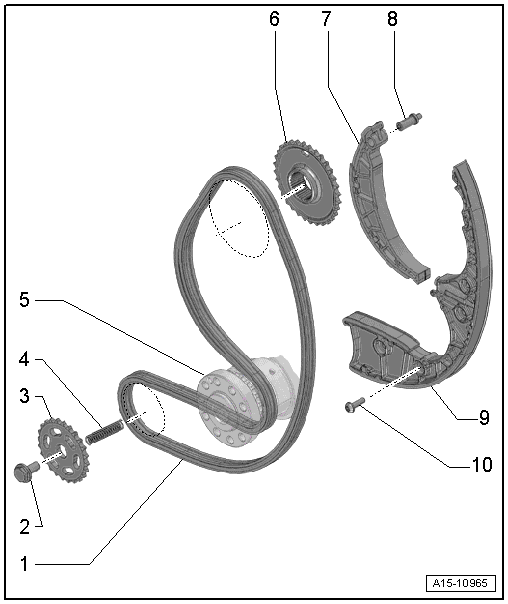

Overview - Oil Pump And High Pressure Pump Drive Chain
WARNING: This page is about a different car, the 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Oil Pump Drive Chain and High Pressure Pump
- Removing and installing. Refer to OIL PUMP AND HIGH PRESSURE PUMP DRIVE CHAIN, REMOVING AND INSTALLING .
- Bolt
- 30 Nm + 45°
- Always replace
- Drive Chain Sprocket
- For the oil pump
- Pressure Spring
- Crankshaft
- With chain sprocket for the oil pump drive chain and the high pressure pump
- Drive Chain Sprocket
- For high pressure pump
- Guide Rail
- Guide Pin
- 5 Nm + 90°
- Always replace
- For guide rail
- Chain Tensioner
- With glide track
- Bolt
- 5 Nm + 90° turn
- Always replace
