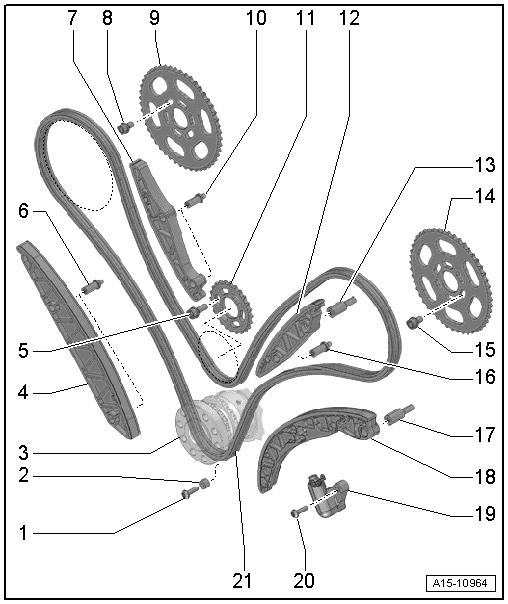

Overview - Camshaft Timing Chains
WARNING: This page is about a different car, the 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 9 Nm
- Jump Protector
- Crankshaft
- With chain sprocket for the camshaft timing chain
- Guide Rail
- Pay attention to the installed position.
- Bolt
- Tightening specification -Item 3- OVERVIEW - BALANCE SHAFT .
- Guide Pin
- 5 Nm + 90°
- Always replace
- For guide rail
- Guide Rail
- Pay attention to the installed position.
- Bolt
- 23 Nm
- Camshaft Chain Sprocket
- For the intake camshaft
- Installation position: labeled side is legible from behind
- Guide Pin
- 5 Nm + 90° turn
- Always replace
- For guide rail
- Chain Sprocket
- For the balance shaft
- Guide Rail
- Pay attention to the installed position.
- Guide Pin
- 23 Nm
- For guide rail
- Camshaft Chain Sprocket
- For the intake camshaft
- Installation position: labeled side is legible from behind
- Bolt
- 23 Nm
- Guide Pin
- 5 Nm + 90° turn
- Always replace
- For guide rail
- Guide Pin
- 23 Nm
- For tensioning track
- Tensioning Rail
- Chain Tensioner
- For the camshaft timing chain
- Bolt
- 5 Nm + 90°
- Always replace
- Camshaft Timing Chain
- Remove from the camshafts. Refer to CAMSHAFT TIMING CHAIN, REMOVING FROM CAMSHAFTS .
- Before removing, mark the direction of rotation with paint
- Removing and installing. Refer to CAMSHAFT TIMING CHAIN, REMOVING AND INSTALLING .
