Oil Pump And High Pressure Pump Drive Chain, Removing And Installing: Removing

WARNING: This page is about a different car, the 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the lower timing chain cover. Refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .

-- Remove the camshaft timing chain. Refer to CAMSHAFT TIMING CHAIN, REMOVING AND INSTALLING .

-- Remove both of the upper glide tracks for the camshaft timing chain.

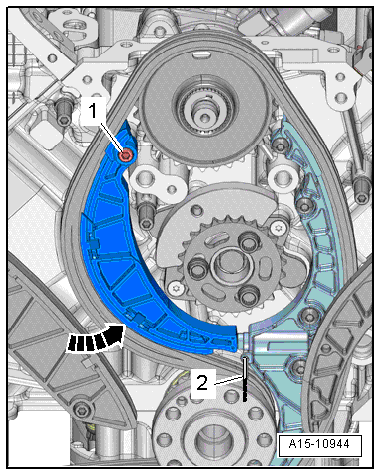

-- Push the tensioning track for the camshaft timing chain in direction of -arrow- and secure the chain tensioner with the :T40316 -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1- and remove the tensioning rail.

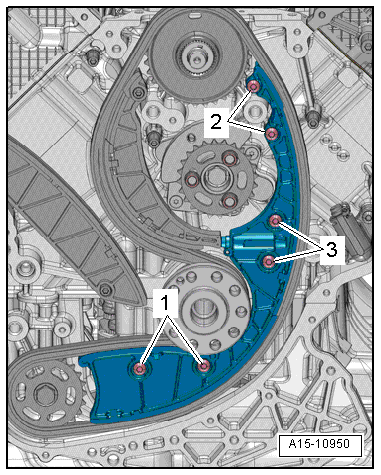

-- Remove the bolts -1, 2 and 3- and remove the chain tensioner for the oil pump drive chain and the high pressure pump.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the oil pump drive chain and the high pressure pump.
