Camshaft Timing Chain, Removing From Camshafts: Installing: Notes

WARNING: This page is about a different car, the 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

Secure crankshaft -1- in "TDC" position using :T40237 .

NOTE:

Replace the bolts that were tightened with an additional turn.

Replace the locking bolt seal for the "TDC" marking.

-- Check whether camshafts of both cylinder heads stand in "TDC" position.

Courtesy of AUDI OF AMERICA, LLC

It must be possible to secure the camshafts with the :T40060 .
The bolt -arrow- in the :T40060 must be perpendicular to the center line of the camshaft on cylinder bank 1 (right).

The bolt -arrow- in the :T40060 must be perpendicular to the center line of the camshaft on cylinder bank 2 (left).

Courtesy of AUDI OF AMERICA, LLC

-- Remove the :T40060 from both camshafts.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damaging valves and piston crowns.

If camshafts are rotated, the crankshaft may not rest with any piston at "TDC".

NOTE:

If the camshafts are not secured, it is possible to correct them slightly with the :T40061 by installing the camshaft chain sprocket on the camshaft.

-- Install the left chain sprocket with the camshaft timing chain.

Courtesy of AUDI OF AMERICA, LLC

The slots in the camshaft chain sprocket must be at the middle position in relation to the threaded holes in the camshaft.

-- Next, loosely install two bolts -1- for the camshaft chain sprocket.

It must still be possible to rotate the camshaft chain sprocket on the camshaft and it must not tip.

-- Secure the left camshaft with the :T40060 .

The bolt -arrow- in the :T40060 must be perpendicular to the center axis of the camshaft.

-- Install the right camshaft chain sprocket with the camshaft timing chain.

Courtesy of AUDI OF AMERICA, LLC

The slots in the camshaft chain sprocket must be at the middle position in relation to the threaded holes in the camshaft.

-- Next, loosely install two bolts -1- for the camshaft chain sprocket.

It must still be possible to rotate the camshaft chain sprocket on the camshaft and it must not tip.

-- Secure the right camshaft with the :T40060 .

The bolt -arrow- in the :T40060 must be perpendicular to the center axis of the camshaft.

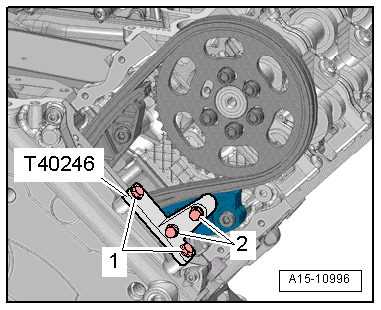

-- Remove the :T40246 .

Courtesy of AUDI OF AMERICA, LLC

-- Have a second technician tension the right camshaft chain sprocket clockwise -arrow- with the :T40062 and the torque wrench to 20 Nm and maintain the pretension.

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts -1 and 2- to the right camshaft chain sprocket.

-- Continue to maintain the pretension and tighten the bolts -1- to the left camshaft chain sprocket.

Courtesy of AUDI OF AMERICA, LLC

-- Remove :T40062 and :T40060 .

-- Tighten the remaining bolts for the left and right camshaft chain sprocket.

-- Remove the :3242 .

Courtesy of AUDI OF AMERICA, LLC
