Camshaft Timing Chain, Removing And Installing: Removing

WARNING: This page is about a different car, the 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Risk of damaging valves and piston crowns.

Turn the crankshaft and camshafts only with the chain drive completely installed.

-- Remove the lower timing chain cover. Refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Danger of damaging the drive chain because the bolt thread is too long.

Only use bolts with a maximum 22 mm thread length -a- to attach the :T40049 .
If only longer bolts are available, then the bolt head must be installed in such a way so that thread length is still 22 mm only.

-- Secure the :T40049 on the rear side of the crankshaft -arrows-.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Components could be damaged by the camshaft timing chain jumping off.

Only rotate the crankshaft in the direction of engine rotation.

NOTE:

The :T40060 has a flat part -2- which makes it easier to insert if the holes on the camshaft and the cylinder head are slightly offset.

Courtesy of AUDI OF AMERICA, LLC

Insert the pin so that the bolt -1- is perpendicular to the camshaft axle.

Move the bolt -1- 90° -arrow- so that it is perpendicular to the camshaft axle and it is possible to attain the correct "TDC" position.

-- Rotate the crankshaft to "TDC" :

Courtesy of AUDI OF AMERICA, LLC

It must be possible to secure the camshafts with the :T40060 .
The bolt -arrow- in the :T40060 must be perpendicular to the center line of the camshaft on cylinder bank 1 (right).

The bolt -arrow- in the :T40060 must be perpendicular to the center line of the camshaft on cylinder bank 2 (left).

Courtesy of AUDI OF AMERICA, LLC

-- Remove the sealing plug -arrow- from the upper section of the oil pan.

Courtesy of AUDI OF AMERICA, LLC

-- Install the :T40237 in the hole and tighten to 20 Nm. Rotate the crankshaft -1- back and forth slightly to center the pin completely, if necessary.

Courtesy of AUDI OF AMERICA, LLC

-- Push the tensioning track of chain tensioner for the camshaft timing chain in direction of -arrow- and secure the chain tensioner with the :T40316 -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the guide pins -2- and remove the tensioning rail.

CAUTION:

If the running direction is reversed on a used camshaft timing chain, it could be damaged.

Paint arrows to mark the timing chain running direction so it can be installed again.

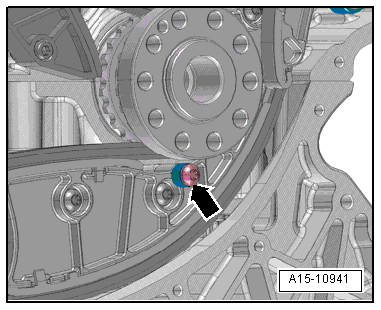

-- Remove the bolt -arrow- for the jump protector.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the :T40060 from both camshafts.

Courtesy of AUDI OF AMERICA, LLC

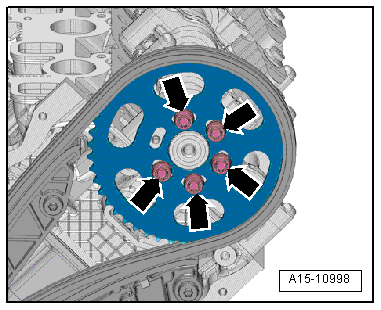

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the camshaft sprockets and the camshaft timing chain.
