Checking Valve Timing

WARNING: This page is about a different car, the 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Components could be damaged by the camshaft timing chain jumping off.

Only rotate the crankshaft in the direction of engine rotation.

-- Turn the crankshaft two turn until the crankshaft is just in front of "Top Dead Center (TDC)".

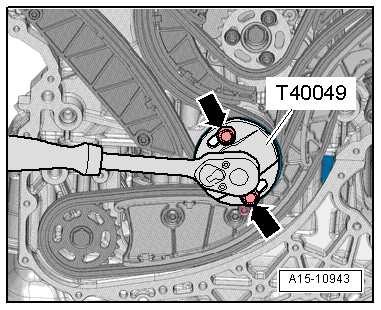

-- Lock the crankshaft -1- from turning using the :3242 to 20 Nm.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

An inaccurate "TDC" setting will cause an inaccurate setting.

If the crankshaft was turned past "TDC" : Turn the crankshaft again two turns until it is just in front of "TDC". Then use the :3242 to keep crankshaft from turning.

-- Check whether camshafts of both cylinder heads stand in "TDC" position.

Courtesy of AUDI OF AMERICA, LLC

It must be possible to secure the camshafts with the :T40060 .

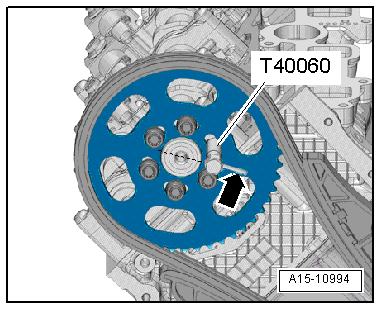

The bolt -arrow- in the :T40060 must be perpendicular to the center line of the camshaft on cylinder bank 1 (right).

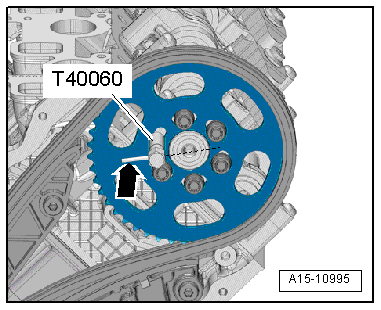

The bolt -arrow- in the :T40060 must be perpendicular to the center line of the camshaft on cylinder bank 2 (left).
