Vibration Damper, Removing And Installing: Removing
WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the supercharger ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING, SUPERCHARGER RIBBED BELT .
-- Remove the ribbed belt from the tensioner and release the tension on the tensioner. Refer to RIBBED BELT TENSIONER, REMOVING AND INSTALLING, ACCESSORY RIBBED BELT .

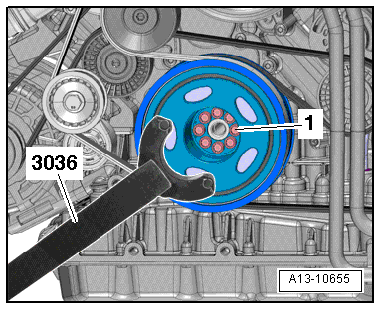

-- Counterhold with the :3036 and loosen the bolts -1- for the vibration damper.
-- Remove the bolts and remove the vibration damper.
