Ribbed Belt, Removing And Installing, Accessory Ribbed Belt: Removing

WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the supercharger ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING, SUPERCHARGER RIBBED BELT .

-- Remove the bolt -arrow- using the :3320/2 .

-- Push the idler roller to the fan shroud.

NOTE:

The Idler Roller Cannot Be Removed.

-- Remove the bolt -2- on the left front coolant pipes.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The Installation Location Is Shown With The Engine Removed.

Ignore item -1-.

NOTE:

Ignore item -2-.

-- Remove the bolt -1- for the left front coolant pipes.

Courtesy of AUDI OF AMERICA, LLC

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk Of Damage Due To Reversed Running Direction On A Used Ribbed Belt.

Before removing ribbed belt, marking running direction with chalk or felt-tip pen for reinstallation later.

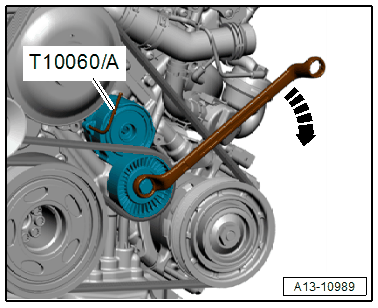

-- To release the tension on the ribbed belt, pivot the tensioner clockwise in direction of -arrow- and then lock using a :T10060A .

-- Remove the ribbed belt.
