Overview - Supercharger Ribbed Belt, Ribbed Belt Drive

WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

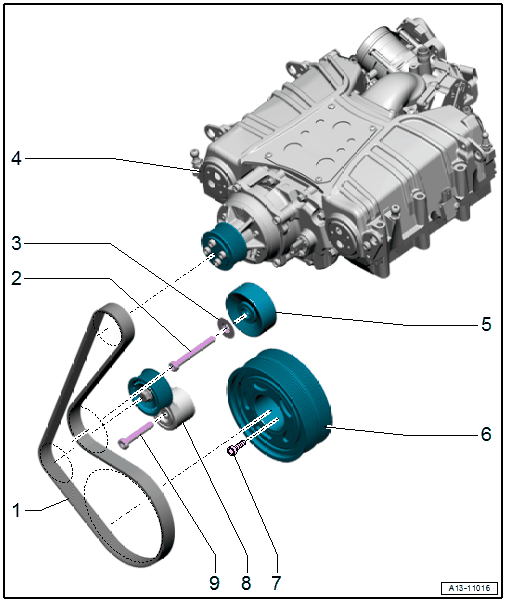

Fig 1: Exploded View Of Supercharger Ribbed Belt, Ribbed Belt Drive

Courtesy of AUDI OF AMERICA, LLC

Ribbed Belt
- For the supercharger
- Check for wear
- Removing and installing. Refer to RIBBED BELT, REMOVING AND INSTALLING, SUPERCHARGER RIBBED BELT .
- When installing, make sure it is seated correctly on the ribbed belt pulleys
Bolt
- 40 Nm
- 37 Nm when using Wrench - Door Adjusting :3320
- Not available separately, one unit with -5-
Washer
- Not available separately, one unit with -5-
Supercharger
- Overview. Refer to OVERVIEW - SUPERCHARGER .
Idler Roller
- For the ribbed belt
- One unit with -2, and 3-
Vibration Damper
- With ribbed belt pulley
- Installation is only possible in one position because of the offset holes
- Removing and installing. Refer to VIBRATION DAMPER, REMOVING AND INSTALLING .
Bolt
- Tightening specification -Item ) OVERVIEW - ACCESSORY RIBBED BELT, RIBBED BELT DRIVE.
Tensioner
- For the ribbed belt
- Removing and installing. Refer to RIBBED BELT TENSIONER, REMOVING AND INSTALLING, SUPERCHARGER RIBBED BELT .
Bolt
- 40 Nm
