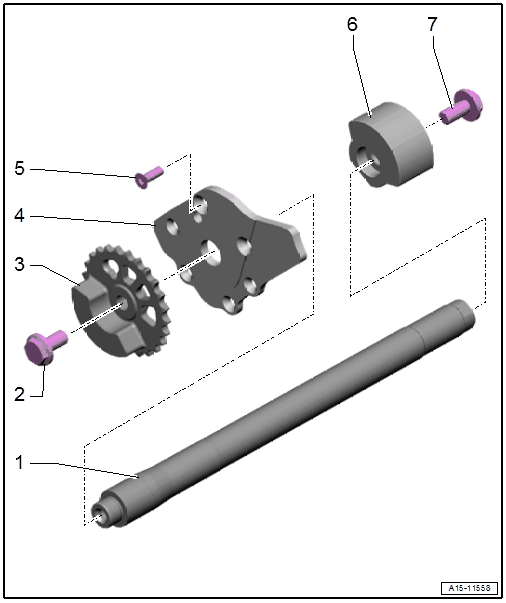

Overview - Balance Shaft
WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Balance Shaft
- Removing and installing. Refer to BALANCE SHAFT, REMOVING AND INSTALLING .
- Bolt
- 40 Nm + 90°
- Replace after removing
- For loosening and tightening, use the Locating Pins :T40116 as a counterholder
- Balance Shaft Chain Sprocket
- With transmission side balance weight
- Gear Carrier
- Bolt
- 15 Nm
- Balance Shaft Belt Pulley Side
- Can only be placed on the balance shaft in one position
- Bolt
- 40 Nm + 90°
- Replace after removing
- For loosening and tightening, use the Locating Pins :T40116 as a counterholder
