Balance Shaft, Removing And Installing: Removing
WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- The transmission is removed:
- Refer to TRANSMISSION, DISASSEMBLING AND ASSEMBLING [7-SPEED DUAL CLUTCH TRANSMISSION 0CJ, 0CL, 0CK, 0DN, 0DP] and/or TRANSMISSION, REMOVING [7-SPEED DUAL CLUTCH TRANSMISSION 0CK] .
- Refer to TRANSMISSION, REMOVING [8-SPEED AUTOMATIC TRANSMISSION 0BK AWD] .
-- Remove the belt pulley side sealing flange. Refer to SEALING FLANGE, REMOVING AND INSTALLING, BELT PULLEY SIDE .
-- Remove the lower timing chain cover. Refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .

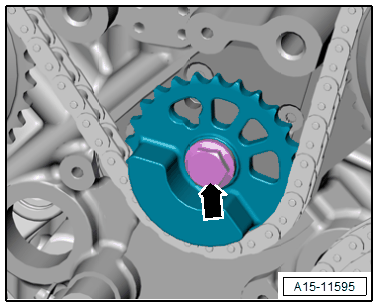

-- Loosen the bolt -arrow- one turn to do so use the :T40116 as counterholder.
-- Remove timing mechanism drive chain. Refer to TIMING MECHANISM DRIVE CHAIN, REMOVING AND INSTALLING .

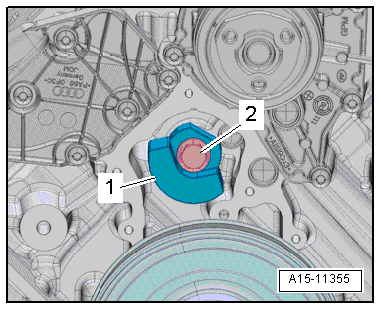

-- Remove the bolt -2- on the engine belt pulley side, to do so counterhold the balance weight with the drift and balance shaft balance weight -1-.

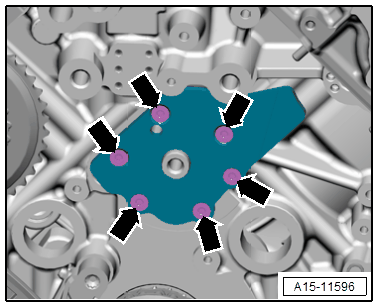

-- Remove the bolts -arrows- and the balance shaft and bearing end bracket at the engine transmission side.
-- Remove the balance shaft back out of the cylinder block.
