Vibration Damper, Removing And Installing: Removing
WARNING: This page is about a different car, the 2018 Audi S6, 2017 Audi S6, and 2016 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
Audi S6/RS6/RS7
-- Remove the radiator, with the fan shroud. Refer to RADIATOR, REMOVING AND INSTALLING, AUDI S6/S7 .
Audi S7
-- Remove the fan shroud. Refer to FAN SHROUD, REMOVING AND INSTALLING .
Continuation For All Vehicles

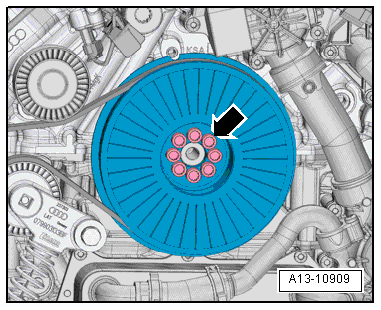

-- Loosen the vibration damper bolts -arrow- a few turns by counter-holding the wrench on the generator ribbed belt pulley nut.
-- Remove the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .
-- Remove the bolts -arrow- and remove the vibration damper.
