Ribbed Belt, Removing And Installing: Removing

WARNING: This page is about a different car, the 2018 Audi S6, 2017 Audi S6, and 2016 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove The Front Noise Insulation. Refer to FRONT NOISE INSULATION, REMOVING AND INSTALLING .

-- Remove The Front Right Wheel Spoiler. Refer to FRONT WHEEL SPOILER, REMOVING AND INSTALLING .

-- Remove The Front Bumper Cover End Plate. Refer to the appropriate service information; FRONT BUMPER COVER END PLATE, REMOVING AND INSTALLING, AUDI A6/S6 and/or FRONT BUMPER COVER END PLATE, REMOVING AND INSTALLING, AUDI RS6 .

WARNING:

There is a risk of injury if the radiator fan turns on by itself.

The coolant fan can come on even when the ignition is turned off, for example, caused by the heat still in the engine compartment.

Audi RS6/RS7

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -arrow-, push the front lower coolant line slightly forward.

Continuation For All Vehicles

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damage due to reversed running direction on a used ribbed belt.

Before removing ribbed belt, marking running direction with chalk or felt-tip pen for reinstallation later.

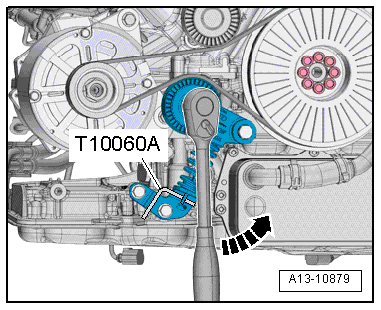

-- To release ribbed belt tension, pivot the damper only as far as necessary in the direction of -arrow-.

-- Remove the ribbed belt and release the tension on the tensioning element.

NOTE:

Ignore the :T10060A .
