Overview - Charge Air System
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi A6 Quattro, 2017 Audi A6, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

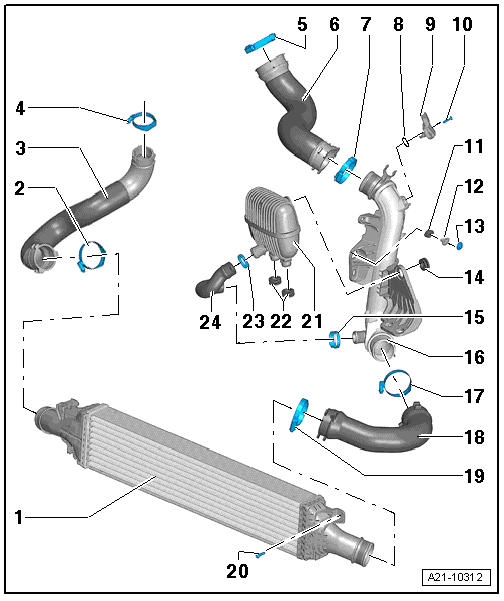

-- Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS . .
- Charge Air Cooler
- Removing and installing. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING .
- Hose Clamp
- Air Guide Hose
- To turbocharger
- Installing. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
- Hose Clamp
- Hose Clamp
- Air Guide Hose
- To the intake manifold
- Installing. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
- Hose Clamp
- O-ring
- Always replace
- Charge Air Pressure Sensor -G31-
- Removing and installing. Refer to Charge Air Pressure Sensor -G31-, REMOVING AND INSTALLING .
- Bolt
- 5 Nm
- Rubber Grommet
- Bushing
- Nut
- 9 Nm
- Rubber Grommet
- Hose Clamp
- Air Guide Pipe
- Hose Clamp
- Air Guide Hose
- From charge air cooler
- Installing. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
- Hose Clamp
- Bolt
- 7 Nm
- Resonator
- Rubber Grommet
- Hose Clamp
- Air Guide Hose
- To the resonator
- Installing. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
