Engine Cover Temperature Sensor -G765-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2018 Audi S6, 2017 Audi S6, and 2016 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Follow all the rules of cleanliness. Refer to CLEAN WORKING CONDITIONS .

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

WARNING:

Fire hazards and risk of damage for a faulty engine cover.

The engine cover must be always be installed before the hood is closed.
The engine may neither be started nor driven without an engine cover.

-- Remove the air duct hoses by loosening the hose clamps -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainer -3- turn the air filter housing upper section -1- counter-clockwise in direction of -arrow B- and then remove it.

NOTE:

Ignore -arrow A-

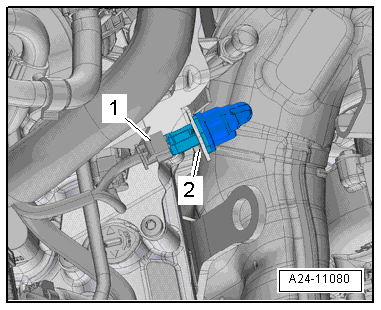

-- Disconnect the connector -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2- and then remove the Engine Cover Temperature Sensor -G765-.
