Overview - Charge Air System
WARNING: This page is about a different car, the 2018 Audi S6, 2017 Audi S6, and 2016 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

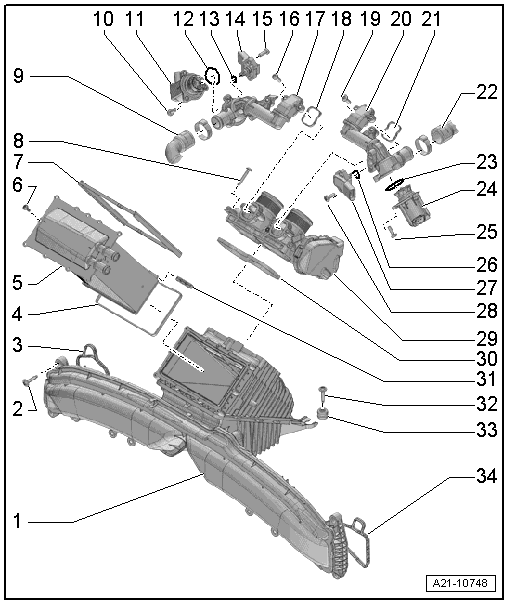

- Charge Air Cooler Housing
- With air guides
- Removing and installing. Refer to CHARGE AIR COOLER HOUSING, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Seal
- Always replace
- Seal
- Always replace
- Charge Air Cooler
- Removing and installing. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING .
- After replacing, replace entire amount of coolant
- Bolt
- 3.2 Nm
- Seal
- Always replace
- For the charge air cooler
- Bolt
- Tightening specification -Item 13- OVERVIEW - THROTTLE VALVE CONTROL MODULE .
- Air Guide Hose
- To the air guide pipe at the turbocharger
- Bolt
- 9 Nm
- Turbocharger Recirculation Valve -N249-
- Removing and installing. Refer to Turbocharger Recirculating Valve -N249-, REMOVING AND INSTALLING .
- O-Ring
- Always replace
- O-Ring
- Always replace
- Charge Air Pressure Sensor -G31-
- Removing and installing. Refer to Charge Air Pressure Sensor -G31-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Air Guide
- Seal
- Always replace
- Bolt
- 9 Nm
- Air Guide
- Seal
- Always replace
- Air Guide Hose
- To the air guide pipe at the turbocharger
- O-Ring
- Always replace
- Turbocharger Recirculation Valve Bank 2 -N427-
- Removing and installing. Refer to Turbocharger Recirculation Valve Bank 2 -N427-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- O-Ring
- Always replace
- Charge Air Pressure Sensor 2 -G447-
- Removing and installing. Refer to Charge Air Pressure Sensor 2 -G447-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Throttle Valve Control Module -J338-
- Removing and installing. Refer to Throttle Valve Control Module -J338-, REMOVING AND INSTALLING .
- Seal
- Always replace
- Adjusting Buffer
- For the charge air cooler
- Bolt
- 9 Nm
- Grommet
- Seal
- Always replace
