Charge Air Cooler, Removing And Installing: Removing
WARNING: This page is about a different car, the 2018 Audi S6, 2017 Audi S6, and 2016 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Follow all the rules of cleanliness. Refer to CLEAN WORKING CONDITIONS .
-- Support the engine in its installed position. Refer to ENGINE, SUPPORTING IN INSTALLED POSITION .
-- Lift the engine using the :10-222A/11 -1- to dimension -a-.
- Dimension -a- = approximately 15 mm.
NOTE:
Use a cloth to catch any leaking coolant.

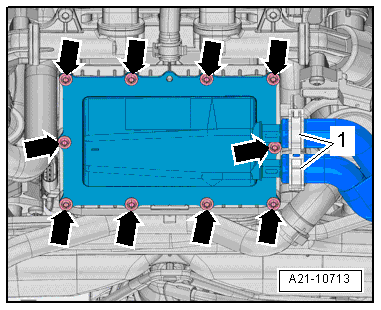

-- Loosen the hose clamps -1-, then clamp off the coolant hoses with the :3094 and then remove them.
-- Remove the bolts -arrows- and then remove the charge air cooler from the charge air cooler housing.
