Rotor Unit, Removing And Installing: Removing

WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Supercharger secured to engine/transmission holder for repair work. Refer to SUPERCHARGER, SECURING TO ENGINE/TRANSMISSION HOLDER FOR REPAIR WORK .

-- Remove the solenoid coupling. Refer to SOLENOID COUPLING, REMOVING AND INSTALLING .

-- Remove the operating head. Refer to OPERATING HEAD, REMOVING AND INSTALLING .

-- Hold the supercharger perpendicular on the engine/transmission holder.

The rotor unit spur gears point upward.

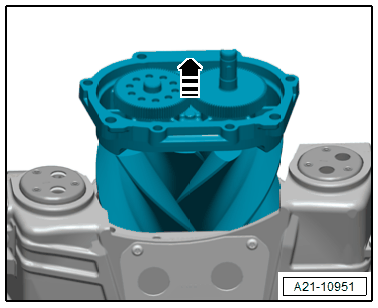

-- Carefully remove the rotor unit upward -arrow- while doing so pay attention that the compressor housing rotors inner surfaces are not damaged.

Courtesy of AUDI OF AMERICA, LLC

-- Place the rotor unit carefully aside and protect from dust.

-- To prevent dirt and small parts from entering into the compressor housing, seal the air duct with clean cloths.

CAUTION:

There is a risk of damaging the compressor housing surfaces.

If required for the following steps protect the surfaces on the compressor housing with cloths.

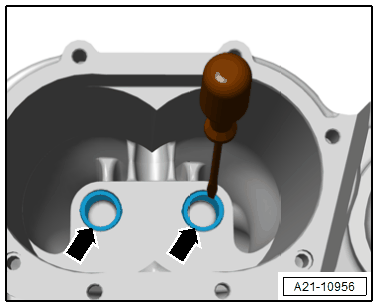

-- Bend the gasket -arrows- for the rotors needle bearing on both mounts toward the inside with a screwdriver.

Courtesy of AUDI OF AMERICA, LLC

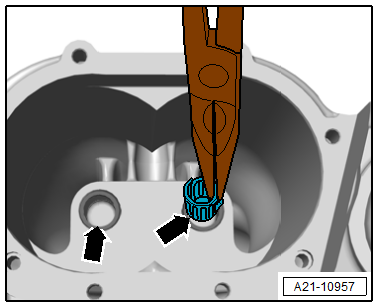

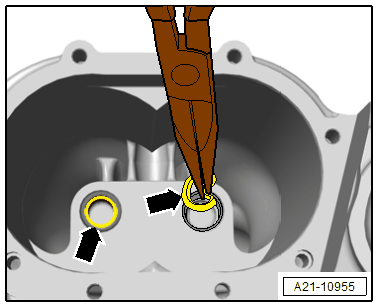

-- Remove the gasket -arrows- for the rotors needle bearing on both mounts with needle nose pliers.

Courtesy of AUDI OF AMERICA, LLC

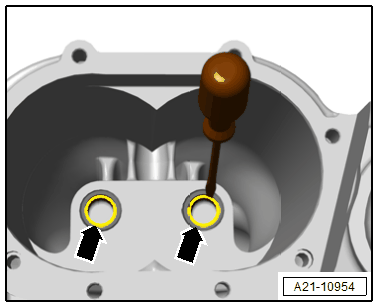

-- Break off the needle bearing cages -arrows- on both mounts with a screwdriver.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the needle bearing cages -arrows- from both mounts with needle nose pliers.

Courtesy of AUDI OF AMERICA, LLC

-- Completely remove the loose mount rolls with a magnet.

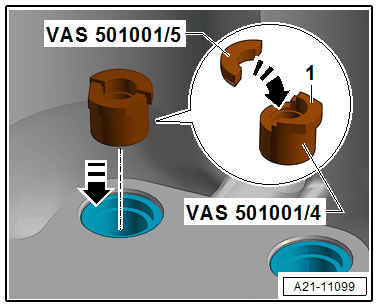

-- Insert the threaded bushing : VAS501 001/4 in the needle bearing sleeve, make sure that the collar -1- points upward.

Courtesy of AUDI OF AMERICA, LLC

-- Place the thrust plate :VAS501 001/5 on the threaded bushing : VAS501 001/4 the tool labeling points upward.

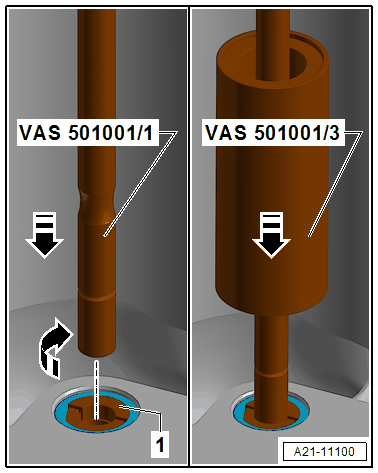

-- Install the spindle : VAS501 001/1 all the way hand-tight in the threaded bushing :VAS501 001/4 -item 1-.

Courtesy of AUDI OF AMERICA, LLC

-- Position the press sleeve :VAS501 001/3 the end with the flat front side faces downward.

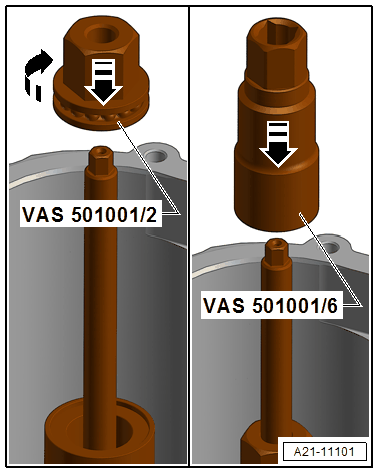

-- Install the thrust nut :VAS501 001/2 on the spindle.

Courtesy of AUDI OF AMERICA, LLC

-- Place the :VAS501 001/6 on the thrust nut.

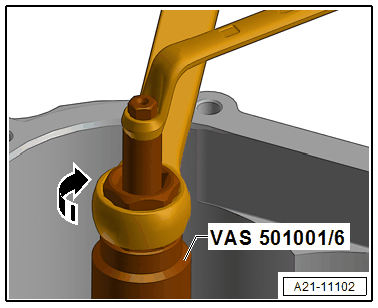

-- Remove the needle bearing sleeve by turning the :VAS501 001/6 . At the same time, use a suitable tool to counterhold at the :VAS501 001/1 .

Courtesy of AUDI OF AMERICA, LLC

-- Remove the sleeve from the second needle bearing in the same way.
