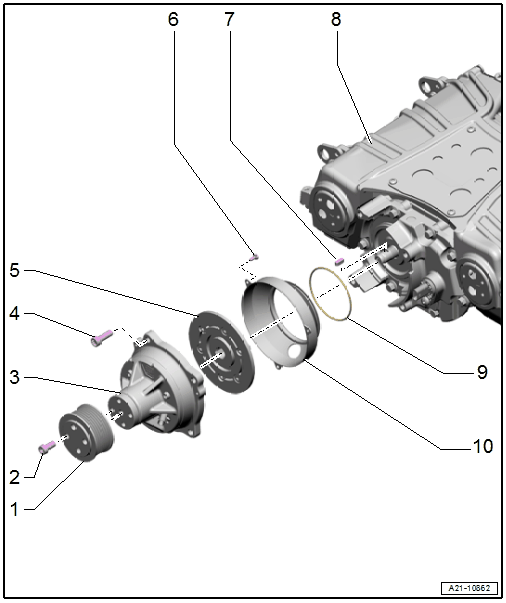

Overview - Solenoid Coupling: Notes
WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Belt Pulley
- For the supercharger
- Removing and installing. Refer to SUPERCHARGER BELT PULLEY, REMOVING AND INSTALLING .
- Bolt
- 20 Nm + 90°
- Replace after removing
- Solenoid Coupling
- Removing and installing. Refer to SOLENOID COUPLING, REMOVING AND INSTALLING .
- Bolt
- 20 Nm
- Drive Plate
- Replace only together with -3-
- Do not loosen the bolted connections on the drive plate
- Replace the drive plate if the bolted connections are loosened
- Removing and installing. Refer to SOLENOID COUPLING, REMOVING AND INSTALLING .
- Clean the friction lining and friction surface before installing with brake cleaner
- Tightening specification for the clamping screw. Refer to appropriate service information.
- Bolt
- 3.6 Nm
- Woodruff Key
- Supercharger
- O-ring
- Replace after removing
- Trim
