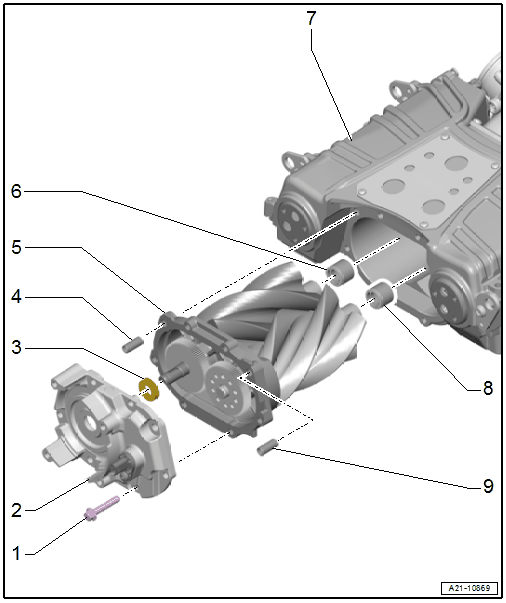

Overview - Rotor Unit
WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 27 Nm
- Remove the old seal or locking fluid from the threads (for example with a thread tap)
- Before installing coat a few threads of the cleaned bolts with locking fluid. Refer to the Parts information.
- Drive Head
- Replace the seal -3-, after every removal
- Removing and installing. Refer to OPERATING HEAD, REMOVING AND INSTALLING .
- Seal
- For the input shaft
- Replacing. Refer to INPUT SHAFT SEAL, REPLACING .
- Alignment Sleeve
- Rotor Unit
- Removing and installing. Refer to ROTOR UNIT, REMOVING AND INSTALLING .
- After every removal and installation. Refer to SUPERCHARGER, CHECKING FOR LEAKS .
- Remove the old seal or locking fluid from the threaded holes (for example with a thread tap)
- Needle Bearing
- For the rotor unit
- Replace together with the rotor unit. Refer to ROTOR UNIT, REMOVING AND INSTALLING .
- Supercharger Housing
- Needle Bearing
- For the rotor unit
- Replace together with the rotor unit. Refer to ROTOR UNIT, REMOVING AND INSTALLING .
- Alignment Sleeve
