Operating Head, Removing And Installing: Removing
WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Supercharger secured to engine/transmission holder for repair work. Refer to SUPERCHARGER, SECURING TO ENGINE/TRANSMISSION HOLDER FOR REPAIR WORK .
-- Remove the solenoid coupling. Refer to SOLENOID COUPLING, REMOVING AND INSTALLING .
-- Hold the supercharger perpendicular on the engine/transmission holder.
- The drive head faces up.
-- Remove the coil spring -1- from driveshaft -2-.
-- Remove the bolts -arrows-.
CAUTION:

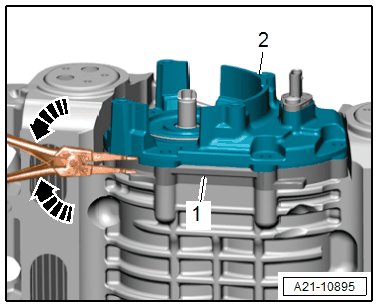

- To prevent the rotor unit bearing cap -1- from coming and loose and having to be sealed again, do not use a hammer to remove the drive head -2- but rather use expanding pliers in direction of -arrows-, as illustrated.
-- Carefully remove the operating head with expanding pliers from the bearing cap.

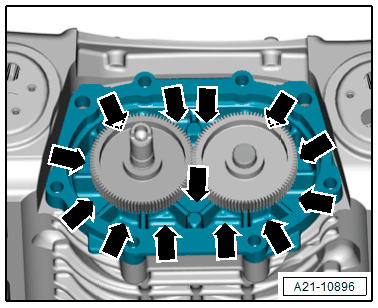

-- Extract all the oil for the supercharger drive from the bearing cap as well as from the oil pockets -arrows- between the ribs using the :SMN372500 .
