Charge Air Pressure Sensor - G31- / -G447-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

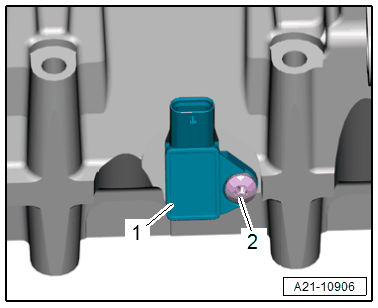

GWWA21-10906Courtesy of AUDI OF AMERICA, LLC

-- Remove the supercharger. Refer to SUPERCHARGER, REMOVING AND INSTALLING .

-- Remove the bolt -2- and the Charge Air Pressure Sensor -G31- or Charge Air Pressure Sensor 2 -G447- -1-.
