Charge Air Cooler, Removing And Installing: Installing

WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Replace the seals, O-rings and self-locking bolts after removing.

Always clean the threaded holes inside the supercharger housing with a thread tap before assembling.

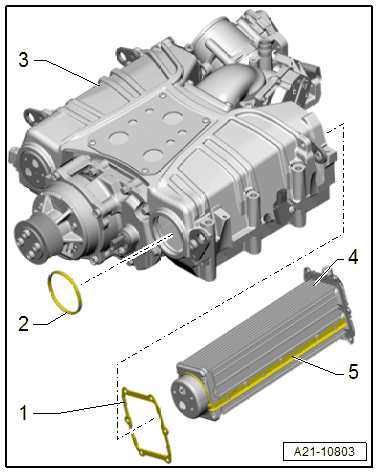

-- Check the seal -5- on the charge air cooler -4-.

The seal must not be cracked or damaged.

-- Slide the seal -1- onto the charge air cooler.

-- Insert the O-ring -2- into the opening in the supercharger housing -3-.

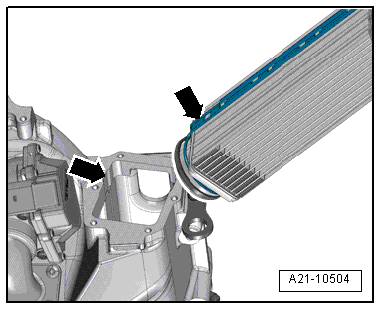

-- Coat the sealing surface -arrow A- and the charge air cooler seal -arrow B- -1- with engine oil.

Courtesy of AUDI OF AMERICA, LLC

-- Coat the inner sealing surface inside the supercharger housing with engine oil.

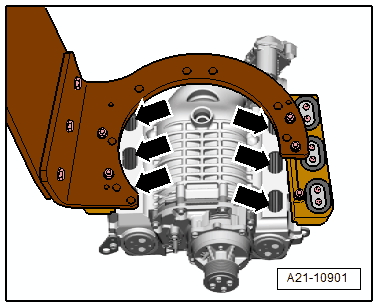

-- Make sure the seals are opposite the openings in the supercharger housing when installing the charge air cooler -arrows-.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Holding the supercharger housing perpendicular in the :VAS6095A makes it easier to install and remove the charge air cooler.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Danger of causing damage to the charge air cooler.

Install the charge air cooler by hand only.

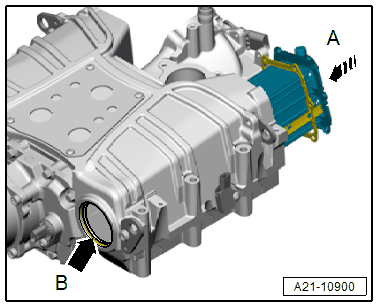

-- Install the charge air cooler all the way into the supercharger housing by hand in direction of -arrow A-. When doing this, let the front of the charge air cooler slide into the hole -arrow B- inside the supercharger housing.

-- Manually guide the charge air cooler by hand through the supercharger housing openings -arrows-, if necessary.

Courtesy of AUDI OF AMERICA, LLC

-- As soon as it is possible, install the two bolts loosely by hand to help guide the charge air cooler.

CAUTION:

Danger of causing damage to the charge air cooler.

The charge air cooler may not be installed by using the bolts.
Install the charge air cooler by hand only until there is maximum 1 mm between the sealing flange and the seal and the supercharger housing. Only then should the bolts be tightened as follows:

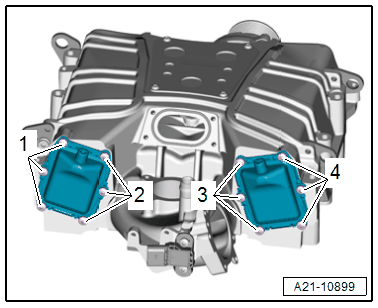

-- Tighten the bolts for the left -1 and 2- and right -3 and 4- charge air coolers in a diagonal sequence and in small steps.

Courtesy of AUDI OF AMERICA, LLC

Installation is performed in reverse order of removal, while noting the following:

-- Install the coolant pipes to the supercharger. Refer to COMPRESSOR COOLANT PIPES, REMOVING AND INSTALLING .

-- Install the Throttle Valve Control Module -J338-. Refer to Throttle Valve Control Module -J338-, REMOVING AND INSTALLING .

-- Install the charge air pressure sensor. Refer to CHARGE AIR PRESSURE SENSOR - G31- / -G447-, REMOVING AND INSTALLING .

-- Check the supercharger for leaks. Refer to SUPERCHARGER, CHECKING FOR LEAKS .
