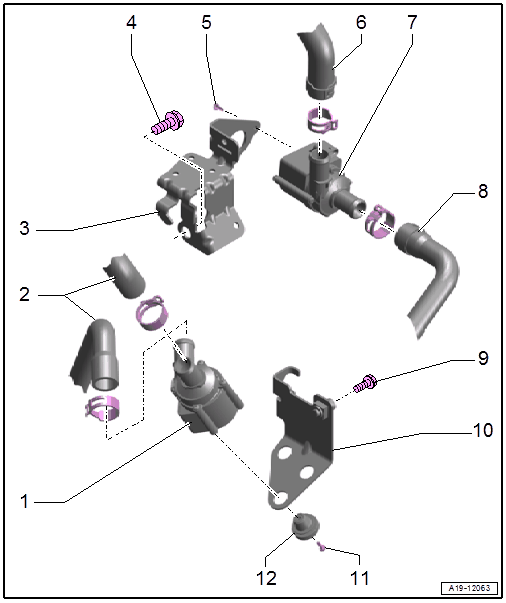

Overview - Electric Coolant Pump
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi A6 Quattro, 2017 Audi A6, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- After-Run Coolant Pump -V51-
- Removing and installing. Refer to After-Run Coolant Pump -V51-, REMOVING AND INSTALLING .
- Coolant Hoses
- Bracket
- For the Coolant Recirculation Pump -V50-
- Bolt
- Tightening Specification. Refer to TRANSMISSION, DISASSEMBLING AND ASSEMBLING [7-SPEED DUAL CLUTCH TRANSMISSION 0CJ, 0CL, 0CK, 0DN, 0DP] or TRANSMISSION TIGHTENING SPECIFICATIONS [CYNB, CPNB ENGINES] .
- Bolt
- 2.7 Nm
- Coolant Hose
- Coolant Recirculation Pump -V50-
- Removing and installing. Refer to Coolant Recirculation Pump -V50-, REMOVING AND INSTALLING .
- Coolant Hose
- Bolt
- 23 Nm
- Bracket
- For After-Run Coolant Pump -V51-
- Bolt
- 2.7 Nm
- Rubber Grommet
