Coolant RECIRCULATION Pump -V50-, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi A6 Quattro, 2017 Audi A6, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the engine cover. Refer to the appropriate service information ; ENGINE COVER, REMOVING AND INSTALLING [CYMC, CYRB, CYRC, CWPB, DAXB, DAXC, CJEB, CJED, CJEE, CNCD, CNCE, CUHA, CUJA, CNCB, CUHB, DAYB, CYGA, CYNB, CYPA, CYPB, CYYA, CVJA ENGINES] , ENGINE COVER, REMOVING AND INSTALLING [CLAB, CLAA, CDUC, CGQB, CKVB, CKVC, CDUD, CPNB, CTCB, CTCC, CVUA, CVUB ENGINES] .

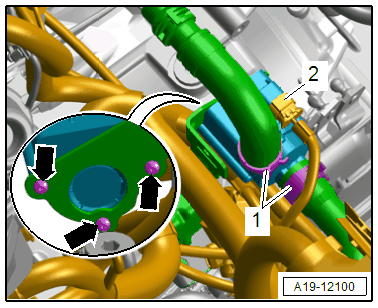

-- Disconnect the connector -2-.
NOTE:
Place A Cloth Underneath To Catch Any Escaping Coolant.
-- Loosen the hose clamps -1-, then clamp off the coolant hoses with the :3094 and remove them.
-- Remove the bolts -arrows- and the Coolant Recirculation Pump -V50-.
