After-Run Coolant Pump -V51-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi A6 Quattro, 2017 Audi A6, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove The Front Noise Insulation. Refer to FRONT NOISE INSULATION, REMOVING AND INSTALLING .

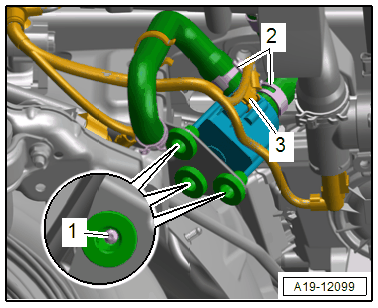

-- Disconnect the connector -3-.

GWWA19-12099Courtesy of AUDI OF AMERICA, LLC
NOTE:

Place a cloth underneath to catch any escaping coolant.

-- Loosen the hose clamps -2-, then clamp off the coolant hoses with the :3094  and remove them.

-- Remove the bolts -1- and the After-Run Coolant Pump -V51-.
