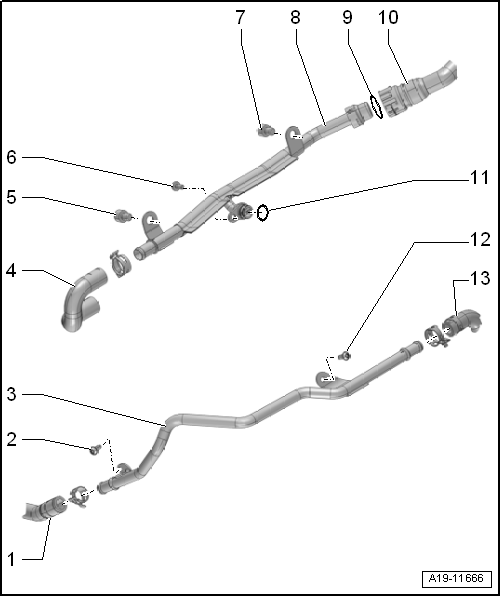

Coolant Pipes On Engine
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi A6 Quattro, 2017 Audi A6, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Coolant Hose
- Bolt
- 9 Nm
- Left Coolant Pipe
- Removing and installing. Refer to LEFT COOLANT PIPE, REMOVING AND INSTALLING
- Coolant Hose
- Bolt
- 20 Nm
- Bolt
- 9 Nm
- Bolt
- 20 Nm
- Right Coolant Pipe
- With check valve
- Removing and installing. Refer to RIGHT COOLANT PIPE, REMOVING AND INSTALLING
- O-ring
- Always replace after removing
- Coolant Hose
- O-ring
- Always replace after removing
- Bolt
- 6 Nm
- Self-tapping
- Position the bolt by hand and tighten it until it finds the old threads. Then tighten the bolt to the specification.
- Coolant Hose
