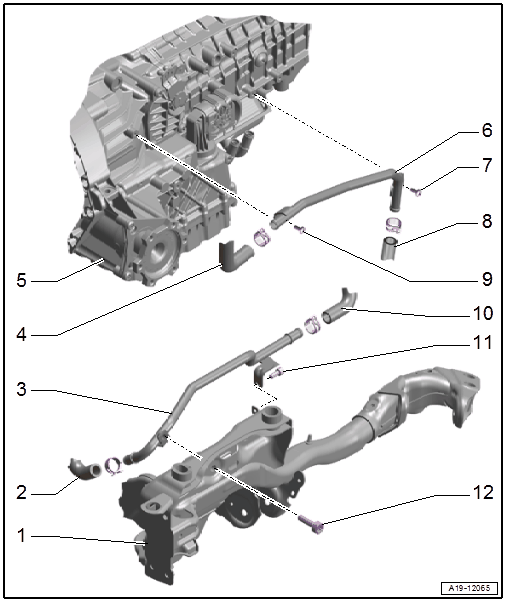

Coolant Pipe On S TRONIC® Transmission 0CK
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi A6 Quattro, 2017 Audi A6, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Subframe
- Coolant Hose
- Coolant Pipe on Subframe
- Removing and installing. Refer to SUBFRAME COOLANT PIPE, REMOVING AND INSTALLING .
- Coolant Hose
- Transmission
- Left Coolant Pipe on Transmission
- Removing and installing. Refer to COOLANT PIPE ON THE TRANSMISSION, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Coolant Hose
- Bolt
- 9 Nm
- Coolant Hose
- Bolt
- 23 Nm
- Bolt
- 23 Nm
