Coolant Pipe On Automatic Transmission 0BK

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi A6 Quattro, 2017 Audi A6, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

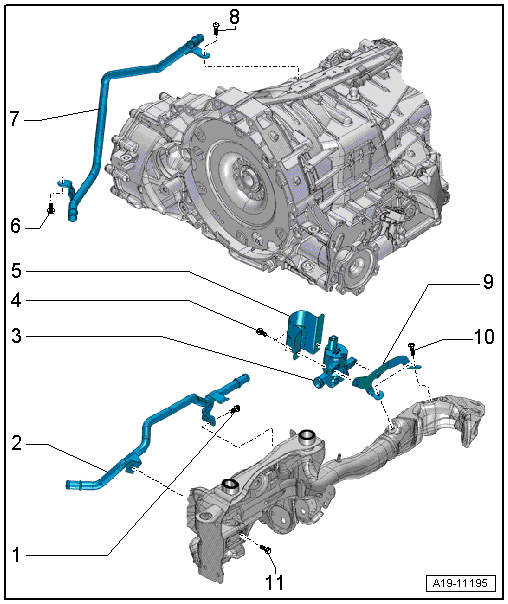

Fig 1: Coolant Pipes On 7-Speed DSG Transmission 0B5 Components Location

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 23 Nm
Coolant Pipe on Subframe
- Removing and installing. Refer to SUBFRAME COOLANT PIPE, REMOVING AND INSTALLING .
Not Installed
Not Installed
Not Installed
Bolt
- 9 Nm
Right Coolant Pipe on Transmission
- There are different versions.
- Removing and installing. Refer to RIGHT COOLANT PIPE ON THE TRANSMISSION, REMOVING AND INSTALLING .
Bolt
- 9 Nm
Not Installed
Not Installed
Bolt
- 23 Nm
