SUBFRAME Coolant Pipe, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi A6 Quattro, 2017 Audi A6, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Support the engine in its installed position. Refer to ENGINE, SUPPORTING IN INSTALLED POSITION .
-- Remove the noise insulations. Refer to NOISE INSULATION, REMOVING AND INSTALLING .
-- Remove the left front wheel spoiler. Refer to FRONT WHEEL SPOILER, REMOVING AND INSTALLING .
-- Remove the engine mount bolts -arrows-.
NOTE:
Ignore items -1 and 2-.
-- Move the engine mount retaining plate to the side.

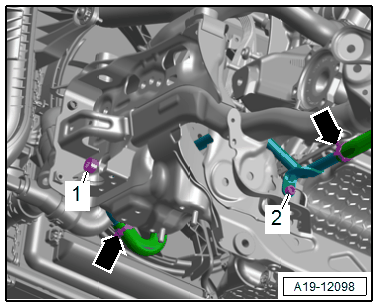

-- Clamp off and remove the coolant hoses with the :3094 by loosening the hose clamps -arrows-.
-- Remove the bolts -1 and 2- and remove the coolant pipe.
