Coolant Pipe On The Transmission, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi A6 Quattro, 2017 Audi A6, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove The Engine Cover. Refer to the appropriate service information; ENGINE COVER, REMOVING AND INSTALLING [CYMC, CYRB, CYRC, CWPB, DAXB, DAXC, CJEB, CJED, CJEE, CNCD, CNCE, CUHA, CUJA, CNCB, CUHB, DAYB, CYGA, CYNB, CYPA, CYPB, CYYA, CVJA ENGINES] , ENGINE COVER, REMOVING AND INSTALLING [CLAB, CLAA, CDUC, CGQB, CKVB, CKVC, CDUD, CPNB, CTCB, CTCC, CVUA, CVUB ENGINES] .

WARNING:

The Cooling System Is Under Pressure When The Engine Is Warm. Risk Of Scalding Due To Hot Steam And Hot Coolant.

Scalding The Skin And Other Parts Of The Body Is Possible.

Wear safety gloves.
Wear protective eyewear.
Reduce the pressure by covering the coolant expansion tank cap with a cloth and carefully opening it.

-- Remove the cap -arrow- from the coolant reservoir.

Courtesy of AUDI OF AMERICA, LLC

-- Remove The Rear Noise Insulation. Refer to REAR NOISE INSULATION, REMOVING AND INSTALLING .

-- Place the :VAS6208 under separating point.

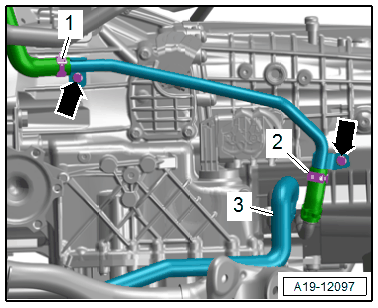

-- Clamp off the coolant hose -3- with the :3094 .

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

-- Loosen the hose clamp -1-, then clamp off the coolant hose with the :3094 and remove.

-- Loosen the hose clamp -2- and remove the coolant pipe.
