Overview - Impact Member, AUDI A6/ALLROAD/S6

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

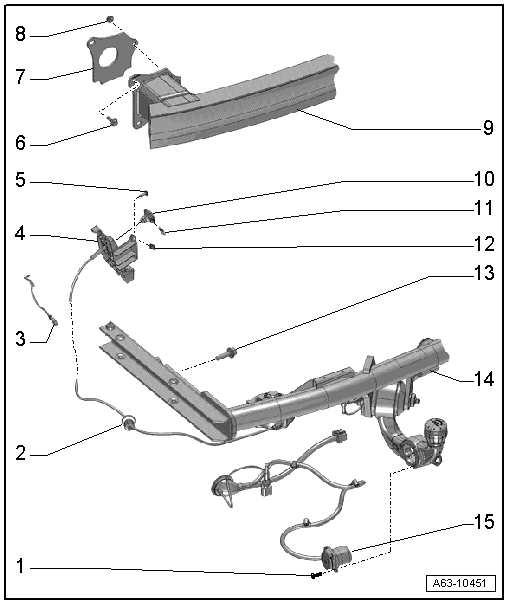

Fig 1: Exploded View Of Impact Member, Audi A6/Allroad/S6

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 3.5 Nm
- Quantity: 3
Grommet
- For the cable
LED Indicator Lamp
- Make sure the trailer hitch it locked correctly
- Removing and installing. Refer to LED INDICATOR LAMP, REMOVING AND INSTALLING
Mount
- For the cable
- Removing and Installing. Refer to CABLE MOUNT, REMOVING AND INSTALLING .
Bolt
- 2 Nm
- Quantity: 3
Bolt
- Quantity: 3
- Tightening sequence. Refer to Fig 2.
Foam Seal
- Replace if damaged
Nut
- 23 Nm + 90°
- Replace after removing.
Impact Member
- For vehicles without a trailer hitch
- Removing and Installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING, VEHICLES WITHOUT TRAILER HITCH, AUDI A6/ALLROAD/S6 .
Pull Knob
- For releasing the trailer hitch
- Removing and Installing. Refer to CABLE MOUNT, REMOVING AND INSTALLING .
Lock Clamp
- For the pull knob
Spring Nut
- Quantity: 3
Bolt
- Replace after removing.
- Quantity: 2
- Tightening sequence. Refer to Fig 3.
Impact Member
- For vehicles with a trailer hitch
- Removing and Installing. Refer to IMPACT ABSORBER, REMOVING AND INSTALLING, VEHICLES WITH TRAILER HITCH .
Socket
- Removing and installing. Refer to CIGARETTE LIGHTER AND SOCKET .
- Connector assignment. Refer to CIGARETTE LIGHTER AND SOCKET .

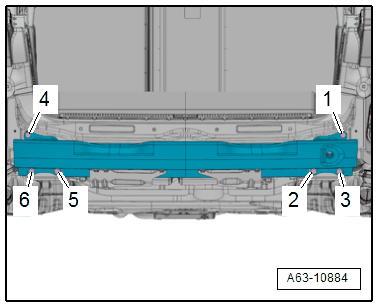

Fig 2: Impact Member Without Trailer Hitch - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts in a -1 to 6- sequence to 30 Nm.

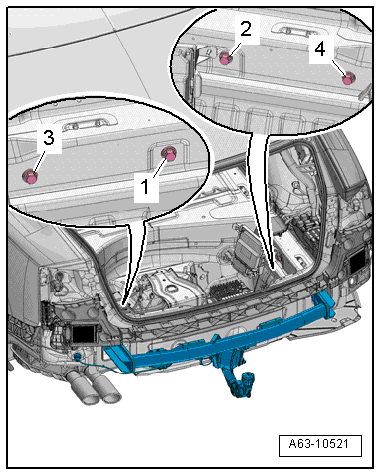

Fig 3: Impact Member with Trailer Hitch - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts to 50 Nm +90° in the following sequence: -1 through 4-.
