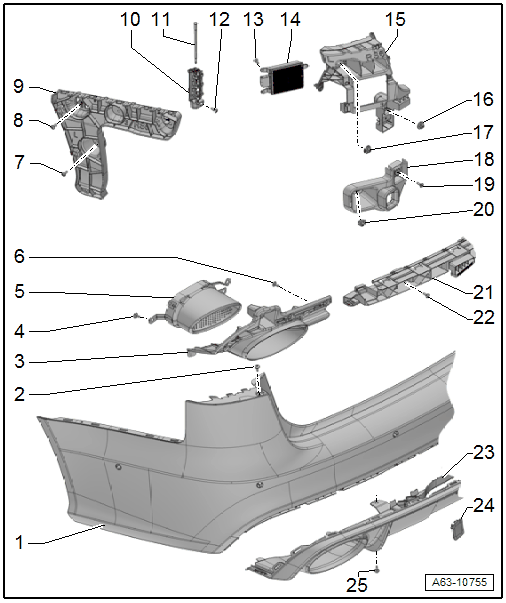

Overview - Bumper Cover, AUDI RS6
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Rear Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2014 .
- Bolt
- 2.5 Nm
- Mount
- For the tail pipe trim
- Removing and Installing. Refer to TAIL PIPE TRIM MOUNT, REMOVING AND INSTALLING, AUDI RS6 .
- Bolt
- 2 Nm
- Quantity: 4
- Tail Pipe Trim
- Removing and Installing. Refer to TAIL PIPE TRIM, REMOVING AND INSTALLING, AUDI RS6 .
- Bolt
- 2 Nm
- Quantity: 3
- Bolt
- Quantity: 2
- Tightening sequence. Refer to Figure.
- Bolt
- Quantity: 2
- Tightening sequence. Refer to Figure.
- Side Mount
- For the bumper cover
- Removing and Installing. Refer to SIDE BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Upper Mount
- For the bumper cover
- Removing and Installing. Refer to UPPER BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Locating Pin
- For attaching the rear bumper cover to the upper mount
- Bolt
- Quantity: 2
- Tightening sequence. Refer to Figure.
- Bolt
- Quantity: 2
- Tightening specification. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
- Lane Change Assistance Control Module
- Removing and installing. Refer to LANE CHANGE ASSISTANCE CONTROL MODULE -J769- / -J770-, REMOVING AND INSTALLING .
- Outer Mount
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER OUTER MOUNT, REMOVING AND INSTALLING, AUDI RS6 .
- Nut
- Tightening sequence. Refer to Fig 2.
- Bolt
- Quantity: 2
- Tightening sequence. Refer to Fig 2.
- Lower Outer Mount
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER OUTER MOUNT, REMOVING AND INSTALLING, AUDI RS6 .
- Bolt
- Tightening sequence. Refer to Fig 2.
- Nut
- Tightening sequence. Refer to Fig 2.
- Mount in the Center
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER CENTER MOUNT, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4
- Tightening sequence. Refer to Figure.
- Bumper Cover Lower Section
- There are different versions.
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, AUDI RS6 .
- Cover
- For the towing eye
- Bolt
- 1.7 Nm
- Quantity: 3
-- Tighten the bolts/nuts in the specified sequence.
| Bolt/Nut | Torque |
|---|---|
| Bolt -1- | 3 Nm |
| Bolt -2- | 3 Nm |
| Nut -3- | 2.2 Nm |
| Screw -4- | 1.5 Nm |
| Nut -5- | 2.2 Nm |
